Liverpool Insurgentes Department Store / Rojkind Arquitectos
Text description provided by the architects. A successful department store had moved for ward with plans to expand and occupy what was once a ver y important open urban space at the busy intersection of Insurgentes and Felix Cuevas avenues in the southern quadrant of Mexico City.

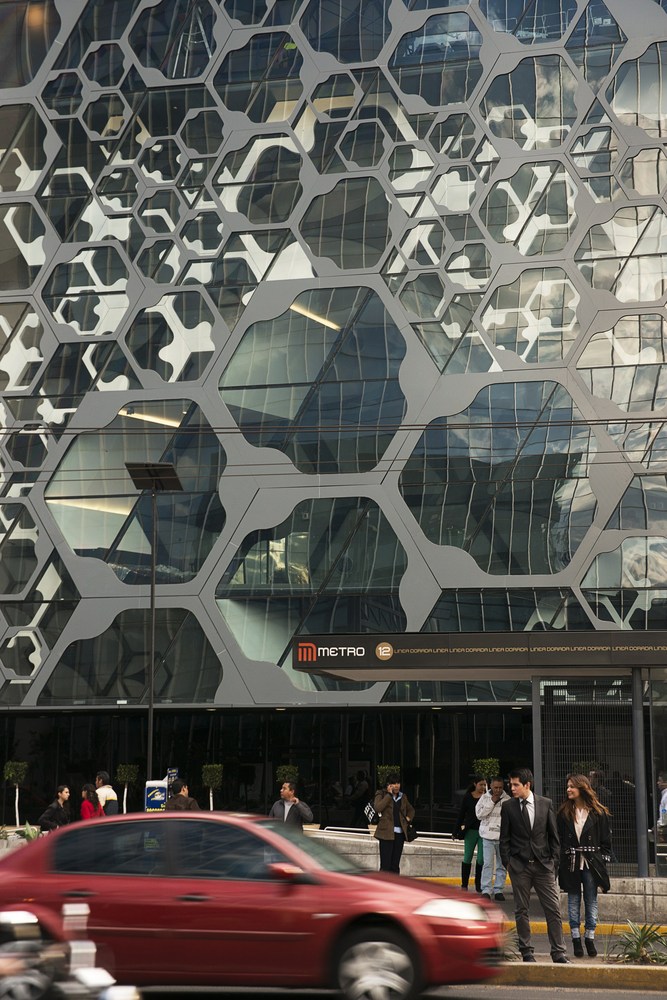

With the opening of a new subway line station at the corner of the site, and its subsequent increase in pedestrian traffic and transport transfer activity, it became apparent that the typical closed retail “big box” model had to be questioned and a new identity given to the existing store’s façade to achieve a more dynamic urban presence and promote the brand.
We proposed to give the box a permeable an animated envelope where inside activity can be showcased and interact with urban activity. A “deep wall” system where new programmatic options can be explored blurring the line between inside and outside and giving the user and passer by a more interactive experience.

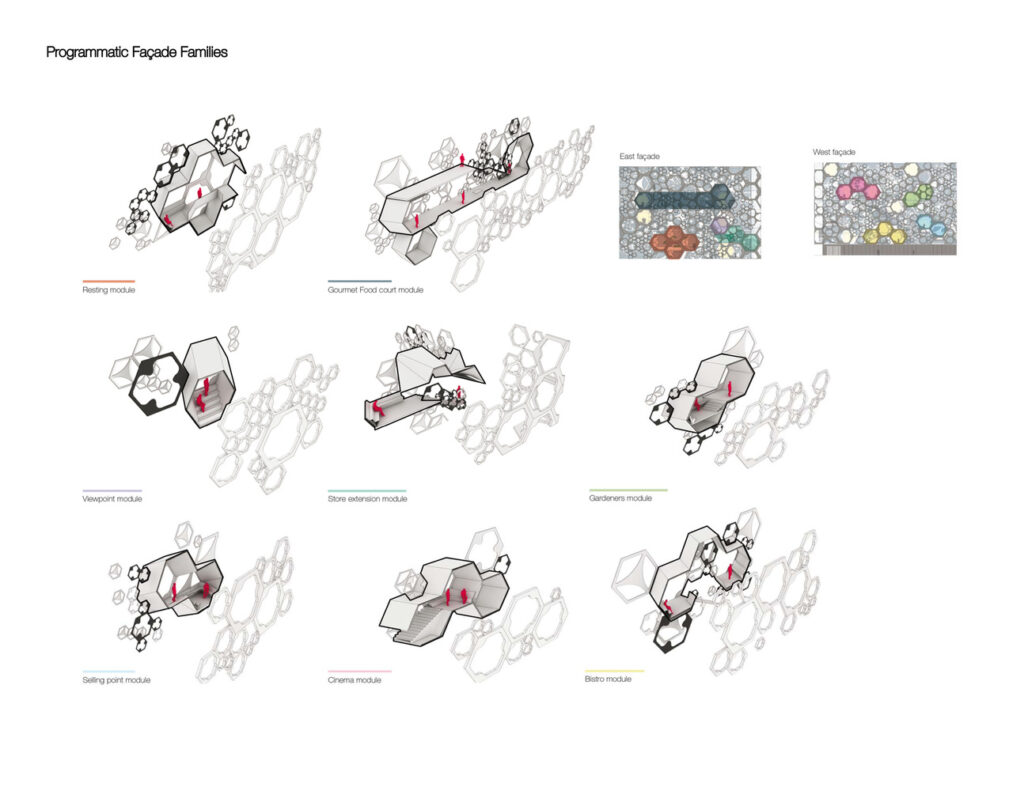

A variety of temporar y programs and/or displays can be housed within the porous habitable façade that becomes a mediator between the busy surrounding urban condition and the department store’s traditionally programmed interiors.

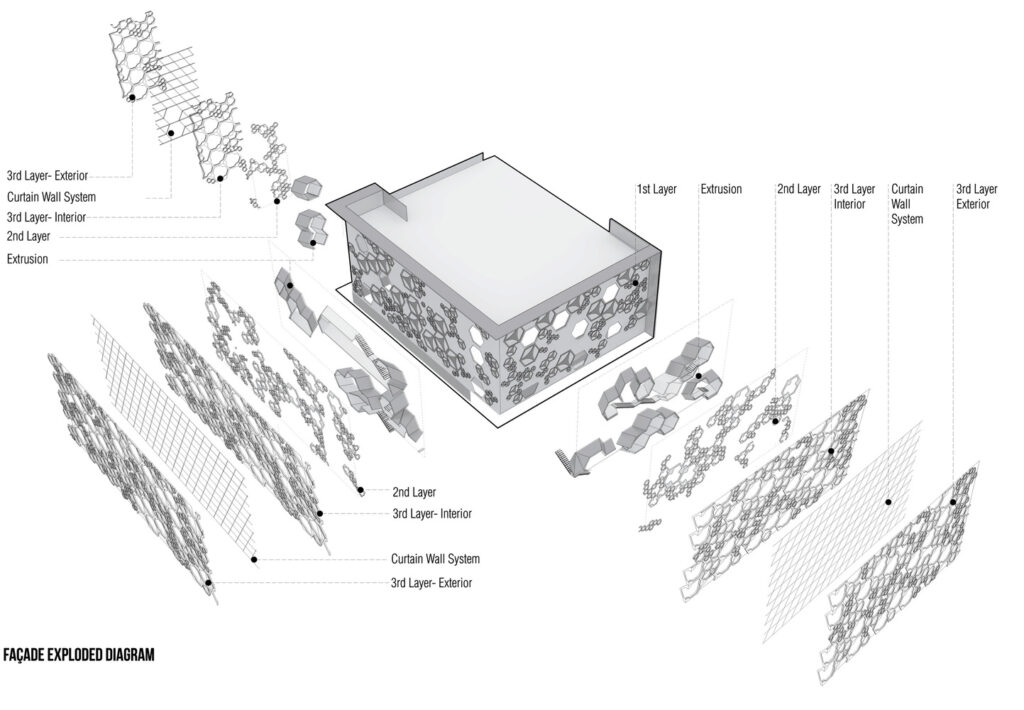

Inspired by Moiré patterns and optical art the 2.8m deep wall façade consists of a three-layer multi-sized hexagon system in fiberglass, steel, aluminum and glass.
The resulting spaces are accessible from the interior through large openings that reveal the inside of the store to the passer by and vice versa and are connected between them through stairs and ramps allowing the dweller to navigate within the façade.
To maintain attainability this project took full advantage of Mexico’s skilled craftsmen and rich tradition in metal work to overcome the unique challenge in fabrication and budget constraints. The result of this “digital design / local fabrication” model is unique in its high-tech but crafted qualities.
Location: Insurgentes Sur, Mexico City, Federal District, Mexico
Architects: Rojkind Arquitectos
Year: 2010
Photographs: Rojkind Arquitectos. Photo: Jaime Navarro
Manufacturers: Comex, Arquimart
Equipo: Alberto Villarreal, Gerardo Villanueva, Rodrigo Medina, Arie de Jongh, Victor Martínez, Juan Carlos Sainz, Adrian Aguilar, Alfredo Hernandez, Andrea León, Beatriz Zavala, Marielle Rivero, Nadezda Stankovic, Felipe Castañeda, Isaac Smeke, Víctor Alemán, Enrique de la Barrera, Davis Guajardo, Daniela Bustamante, Joe Tarr, Will Fox, Philipp Schlauch, Arie Hendrik, Diego Leál, Ignacio Cabrera, Linda Martínez, Karina Amparán, José de Jesús Guerra
Interior Design: Servicios Liverpool SA de CV
Structural Engineer: EMR SA
Façade Engineer: Studio NYL
MEP: RCC
Façade Installation: Alitech, Arquimart, Todo en Metal
Lighting Consultant: Ideas y Proyectos en Luz
Landscape Consultant: Entorno Taller de Paisaje
BIM Administration: ArchiCAD
Media: Monique Rojkind, Rosalba Rojas
Façade Area: 2400 sqm
